Discontinued, Please see updated bundle with new SpaTouch3+ touchpad here
The industry leader reliable feature rich Balboa BP7 control system with a 4.0KW heater bundled with the modern colour screen SpaTouch1 topside control with large easy to read colour LCD screen.
This is an ideal retrofit bundle for the older obsolete Balboa LM8 and LM800 systems.
BP7 Bundle details:
- 220 - 240 volts 60HZ only, cannot run on 120 volts,
- 4.0KW or 5.5W Heater, (select size)
- Can operate:
- Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed)
- Pump 2 - 1 or 2 speeds
- Pump 3 - 1 speed
- Dedicated circulation pump, (min 23 GPM and min 1.5" plumbing required)
- Ozonator - M7 Patented Sensor heater technology
- Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
- Balboa Bluetooth Audio compatible, module 59089 sold separately
- Spa light control 1 Amp max

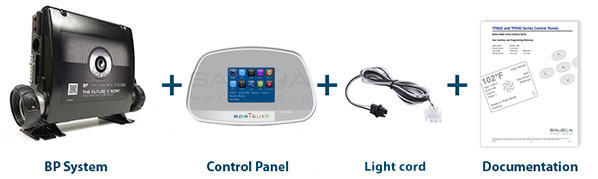

Whats included:
- Balboa Spa pack Selected BP7 P/N G4361 (4.0KW Heater) or G5361 (5.5KW Heater)
- Balboa SpaTouch1 topside control, Face size W=7.8 (20cm) x H=4.7" (12cm)
- Cord for light, 10' long
- Balboa BP7 and TP800 programming user manual (Digital Download)
Why Balboa?
The industry leader for reliability, durability and serviceability, the new BP7 system has a replaceable single circuit board configuration, replaceable heater featuring the quick connect heater plug system and both sensors are individually replaceable.
Important.
This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
Warranty Coverage: Balboa VS packs/bundles and BP series packs/bundles come with a twelve (12) months limited manufacturer's warranty from the date of purchase that covers defects in workmanship and materials. This warranty will be void if these parts are damaged due to improper installation or use or if the damage is from exposure to water or electrical power surges. The warranty does not cover any labour charges, the cost of lost water or chemicals, or any other possible damages. Not suitable for salt water applications, voids warranty.
IMPORTANT. Terminal block screws need to be tightened to torque to the specs listed on the inside cover of the pack. Failure to tighten properly can cause heat/resistance arc burn damage to the circuit board. The manufacturer will not honour the limited product warranty if these connection points are burned.
